Handle applicators

Inserción de asas

AND&OR is nowadays the world leader in the manufacture and marketing of plastic handle application machines for PET or HDPE bottles. Through its long experience and the widest range in the market, AND&OR provides solutions for all its customers production needs.

The AND&OR handle applicators systems allow the insertion of neck handles, lateral handles, umbrella handles, and handles buckets for low, medium, and high production rates.

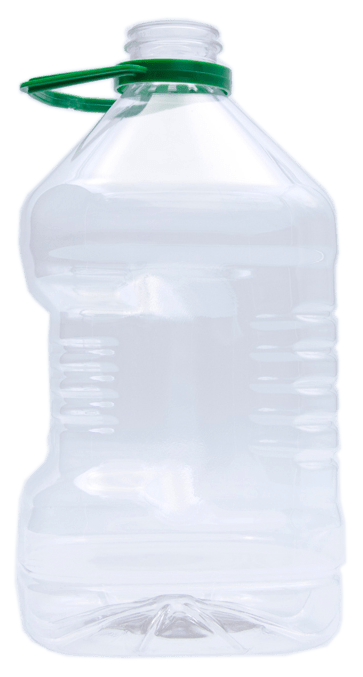

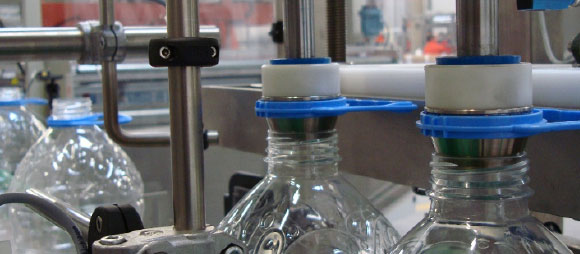

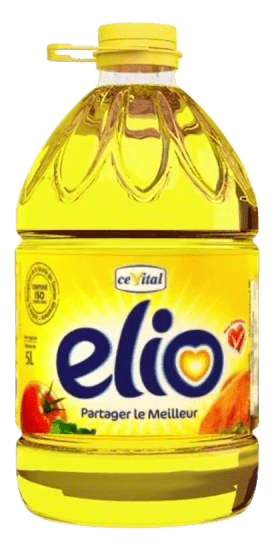

Neck handle applicators
(PET or HDPE bottles from 1.5L to 20L)

  1. Alternative linear systems (pick & place): 1,200 – 2,400 bottles per hour (bph)
  2. Continuous linear systems: 4,000 – 10,000 bph
  3. Rotary systems: 10,000 – 24,000 bph

They are installed in both blow molding and bottling lines (usually after the filling and capping processes).

Up to… Bottles Per Hour (BPH) Reference
1200 SIA1000
2400 SIA2000
4000 SIA3000
8000 SIA5000
10000 SIA8000
12000 SIA 12000
16000 SIA 16000
24000 SIA 24000
Inserción de asas
Inserción de asas
Inserción de asas
Inserción de asas
Inserción de asas

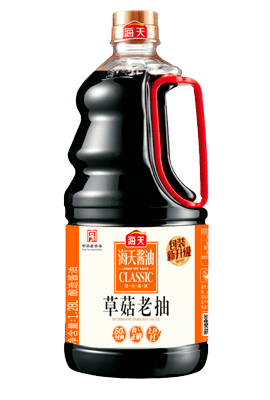

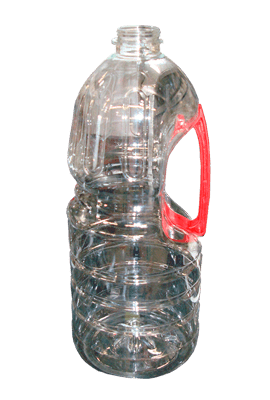

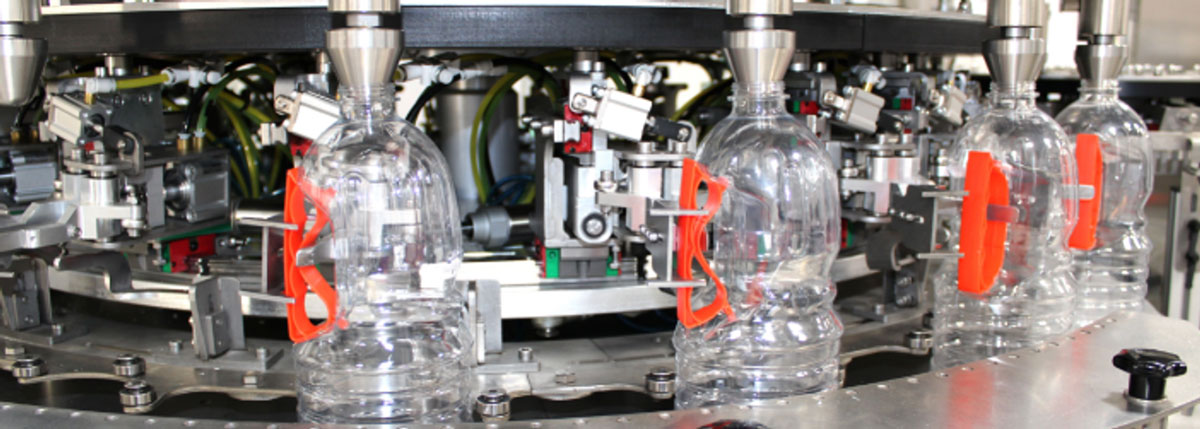

Lateral handle applicators
(PET bottles from 1.5L to 5L)

The lateral handle applicators allow the automatic insertion of a flexible plastic handle in the lateral gap of a PET bottle.

It is appropriate to be installed in both blow molding and filling lines (on existing conveyor, before filling process).

Inserción de asas
Inserción de asas
Inserción de asas

It allows using PET bottles for some beverages and liquid products which need an easy holding for pouring. It replaces the traditional HDPE systems with handle, reaching higer speeds and cost savings.

  • Linear systems: 800 bottles per hour (bph)
  • Rotary systems: 2,000 – 15,000 bph

Optionally, these systems can be integrated in the machine:

  • leak testing equipment
  • positioning device
Up to… Bottles Per Hour (BPH) 1000 3000 6000 8000 12000 15000
Reference SIAL1000 SIAL3000  SIAL6000  SIAL8000  SIAL12000  SIAL15000
Inserción de asas
Up to… Bottles Per Hour (BPH) Reference
1000 SIAL1000
3000 SIAL3000
6000  SIAL6000
8000  SIAL8000
12000  SIAL12000
15000  SIAL15000
Inserción de asas

“ANY HANDLE, ANY BOTTLE, ANY SPEED, WE HANDLE IT!”

Umbrella handle applicators
(PET bottles from 1.5 to 5L)

Up to… Bottles Per Hour (BPH) 1000 2000 4000 6000 12000 24000
Reference SIAP1000 SIAP2000 SIAP4000 SIAP8000 SIAP12000 SIAP24000
Up to… Bottles Per Hour (BPH) Reference
1000 SIAP1000
2000 SIAP2000
4000 SIAP4000
8000 SIAP8000
12000 SIAP12000
24000 SIAP24000
Inserción de asas
Inserción de asas

Handle applicators on buckets

Our handle applicator system on buckets performs the insertion of handles on PET or PE buckets. It is a fully automatic system that allows tumble or pre oriented handles feeding, according to line characteristics.

Reference 50A1ASA-FLAT
Inserción de asas
Inserción de asas

Why choosing our system?

  • Fully automatic system

  • Short payback

  • High efficiency

  • Easy adaptable to existing line

  • Quick change over

  • Compatible with 95% of commercial handles

Why choosing And&Or?

  • First manufacturer and international leader on handle insertion machines

  • More than 34 years of experience

  • Customized projects adapted to your needs

  • Installations, partners, agents and references worldwide

  • After sales service guarantee

HANDLE APPLICATOR MACHINES

neck-handle-applicator-SIA1000

Neck handle applicator. Production rate: 1,200 BPH

SIA1000

Handle applicator SIA1000 performs the orientation and insertion of polyethylene handles (PE) on PET bottles (from 2 to 20 liters). It is based on a machine with alternative movements (pick and place).

It is appropriate to be installed either after the blower in blow molding lines or after the filler, within the filling line, over an existing conveyor and after the capping system.

neck-handle-applicator-SIA2000

Neck handle applicator. Production rate: 2,400 BPH

SIA2000
Handle applicator SIA2000 performs the orientation and insertion of polyethylene handles (PE) on PET bottles (from 2 to 20 liters). It is based on a machine with alternative movements (pick and place).

It is appropriate to be installed either after the blower in blow molding lines or after the filler, within the filling line, over an existing conveyor and after the capping system.

neck-handle-applicator-SIA3000

Neck handle applicator. Production rate: 4,000 BPH

SIA3000
Handle applicator SIA3000 performs the orientation and insertion of polyethylene handles (PE) on PET empty bottles from 2 to 20 liters. It is based on a linear machine with continuous movement.

It is appropriate to be installed either after the blower in blow molding lines or after the filler, within the filling line, over an existing conveyor and after the capping system.

neck-handle-applicator-SIA5000

Neck handle applicator. Production rate: 6,000 BPH

SIA5000
Handle applicator SIA5000 performs the orientation and insertion of polyethylene handles (PE) on PET bottles (from 2 to 10 liters). It is based on a linear machine with continuous movement.

It is appropriate to be installed either after the blower in blow molding lines or after the filler, within the filling line, over an existing conveyor and after the capping system.

neck-handle-applicator-SIA8000

Neck handle applicator. Production rate: 8,000 BPH

SIA8000
Handle applicator SIA8000 performs the orientation and insertion of polyethylene handles (PE) on PET bottles (from 2 to 10 liters). It is based on a linear machine with continuous movement.

It is appropriate to be installed either after the blower in blow molding lines or after the filler, within the filling line, over an existing conveyor and after the capping system.

Maximum production rate: 8,000 BPH – Bottle volume ≥ 5L, Neck ø 38/48mm
Maximum production rate: 10,000 BPH – Bottle volume ≥ 1.5-3L, Neck ø 28mm

neck-handle-applicator-SIA12000

Neck handle applicator. Production rate: 12,000 BPH

SIA12000
Handle applicator SIA12000 performs the orientation and insertion of polyethylene handles (PE) on PET bottles (from 2 to 5 liters). It is based on a rotary machine with continuous movement.

It is appropriate to be installed either after the blower in blow molding lines or after the filler, within the filling line, over an existing conveyor and after the capping system.

neck-handle-applicator-SIA16000

Neck handle applicator. Production rate: 16,000 BPH

SIA16000
Handle applicator SIA16000 performs the orientation and insertion of polyethylene handles (PE) on PET bottles (from 2 to 5 liters). It is based on a rotary machine with continuous movement.

It is appropriate to be installed either after the blower in blow molding lines or after the filler, within the filling line, over an existing conveyor and after the capping system.

neck-handle-applicator-SIA24000

Neck handle applicator. Production rate: 24,000 BPH

SIA24000
Handle applicator SIA24000 performs the orientation and insertion of polyethylene handles (PE) on PET bottles (from 2 to 3 liters). It is based on a rotary machine with continuous movement.

It is appropriate to be installed either after the blower in blow molding lines or after the filler, within the filling line, over an existing conveyor and after the capping system.

lateral-handle-applicator-SIAL1000

Lateral handle applicator. Production rate: 1,000 BPH

SIAL1000 / SIALG1000
Handle applicator SIAL1000 / SIALG1000 performs the insertion of (PE) lateral handles on PET bottles (from 2 up to 5 liters). It is based on a rotary continuous system and is appropriate to be installed in the existing packaging line, on an existing conveyor and before the filling process. This system allows using PET bottles for some products when an easy pouring process is required.

lateral-handle-applicator-SIAL3000

Lateral handle applicator. Production rate: 3,000 BPH

SIAL3000 / SIALG3000
Handle applicator SIAL3000 / SIALG3000 performs the insertion of (PE) lateral handles on PET bottles (from 2 up to 5 liters). It is based on a rotary continuous system and is appropriate to be installed in the existing packaging line, on an existing conveyor and before the filling process. This system allows using PET bottles for some products when an easy pouring process is required.

lateral-handle-applicator-SIAL6000

Lateral handle applicator. Production rate: 6,000 BPH

SIAL 6000/SIALG 6000
Handle applicator SIAL6000 / SIALG6000 performs the insertion of (PE) lateral handles on PET bottles (from 2 up to 5 liters). It is based on a rotary continuous system and is appropriate to be installed in the existing packaging line, on an existing conveyor and before the filling process.

This system allows using PET bottles for some products when an easy pouring process is required.

lateral-handle-applicator-SIAL8000

Lateral handle applicator. Production rate: 8,000 BPH

SIAL8000 / SIALG8000
Handle applicator SIAL8000 / SIALG8000 performs the insertion of (PE) lateral handles on PET bottles (from 2 up to 5 liters). It is based on a rotary continuous system and is appropriate to be installed in the existing packaging line, on an existing conveyor and before the filling process.
This system allows using PET bottles for some products when an easy pouring process is required.

lateral-handle-applicator-SIAL12000

Lateral handle applicator. Production rate: 12,500 BPH

SIAL12000 / SIALG12000
Handle applicator SIAL12000 / SIALG12000 performs the insertion of (PE) lateral handles on PET bottles (from 2 up to 5 liters). It is based on a rotary continuous system and is appropriate to be installed in the existing packaging line, on an existing conveyor and before the filling process.
This system allows using PET bottles for some products when an easy pouring process is required.

lateral-handle-applicator-SIAL15000

Lateral handle applicator. Production rate: 15,000 BPH

SIAL15000/SIALG15000

Handle applicator SIAL15000 / SIALG15000 performs the insertion of (PE) lateral handles on PET bottles (from 2 up to 5 liters). It is based on a rotary continuous system and is appropriate to be installed in the existing packaging line, on an existing conveyor and before the filling process.

This system allows using PET bottles for some products when an easy pouring process is required.

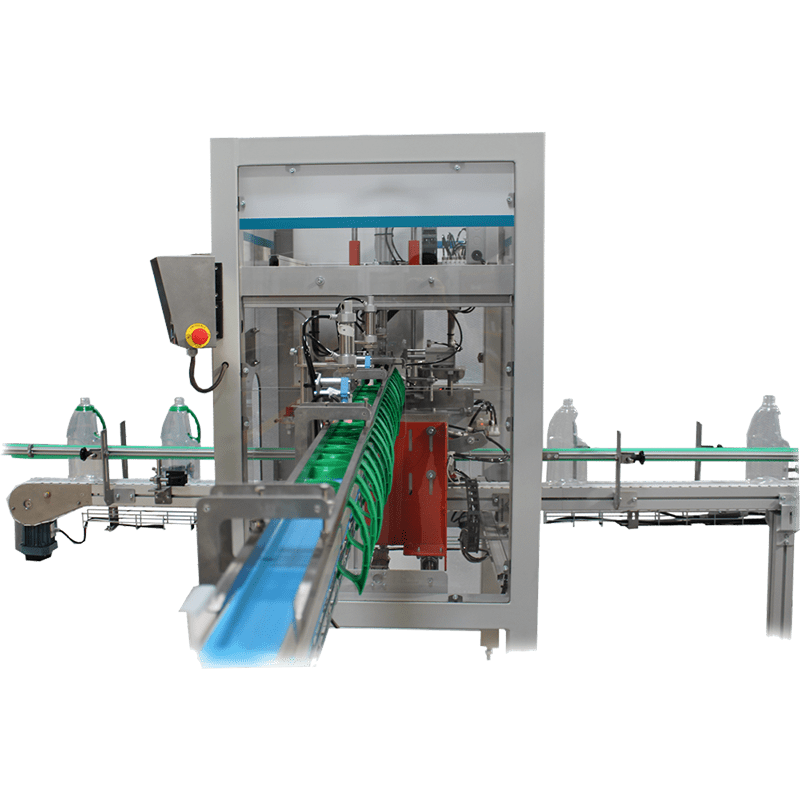

Umbrella handle applicator. Production rate: 1,000 BPH

SIAP1000

Handle applicator SIAP 1000 performs the orientation and insertion of polyethylene umbrella handles (PE) on PET bottles (from 2 to 3 liters). It is based on a rotary machine with continuous movement.

It is appropriate to be installed either after the blower in blow molding lines or after the filler, within the filling line, over an existing conveyor and after the capping system.

Umbrella handle applicator. Production rate: 2,000 BPH

SIAP2000

Handle applicator SIAP 2000 performs the orientation and insertion of polyethylene umbrella handles (PE) on PET bottles (from 2 to 3 liters). It is based on a rotary machine with continuous movement.

It is appropriate to be installed either after the blower in blow molding lines or after the filler, within the filling line, over an existing conveyor and after the capping system.

Umbrella handle applicator. Production rate: 4,000 BPH

SIAP4000

Handle applicator SIAP 4000 performs the orientation and insertion of polyethylene umbrella handles (PE) on PET bottles (from 2 to 3 liters). It is based on a rotary machine with continuous movement.

It is appropriate to be installed either after the blower in blow molding lines or after the filler, within the filling line, over an existing conveyor and after the capping system.

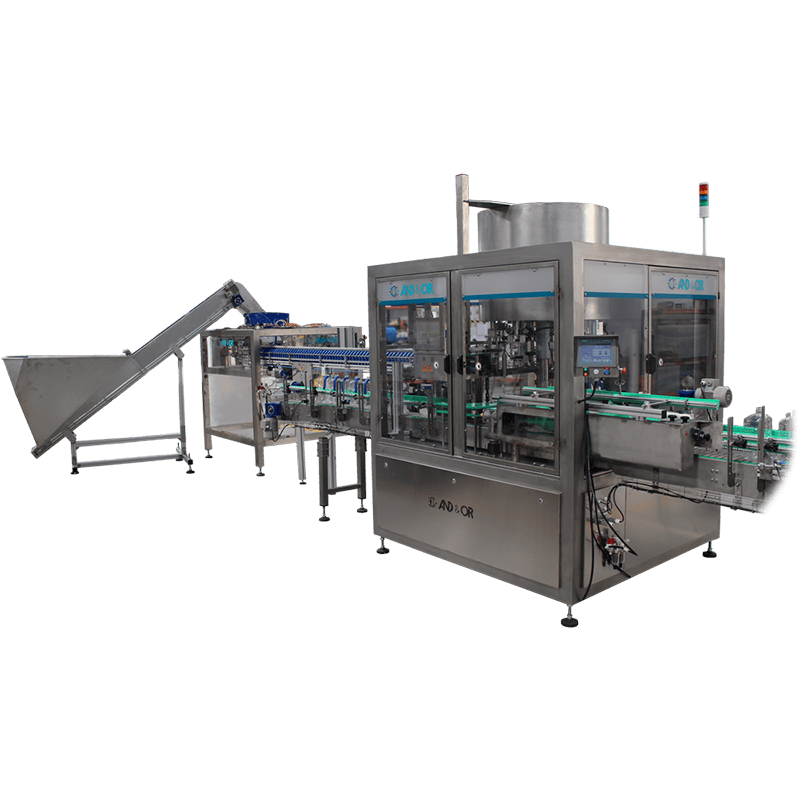

Umbrella handle applicator. Production rate: 8,000 BPH

SIAP8000
Handle applicator SIAP 8000 performs the orientation and insertion of polyethylene umbrella handles (PE) on PET bottles (from 2 to 3 liters). It is based on a rotary machine with continuous movement.

It is appropriate to be installed either after the blower in blow molding lines or after the filler, within the filling line, over an existing conveyor and after the capping system.

Umbrella handle applicator. Production rate: 12,000 BPH

SIAP12000

El equipo automático SIAP 12000 realiza la inserción de asas de polietileno (PE) tipo paraguas en garrafas PET vacías o llenas, de 2 a 3 litros. Basada en una máquina rotativa de movimiento continuo, es un sistema adecuado para colocar bien en línea de soplado, a la salida de la sopladora, o línea de envasado, sobre el transportador existente y después del taponado.

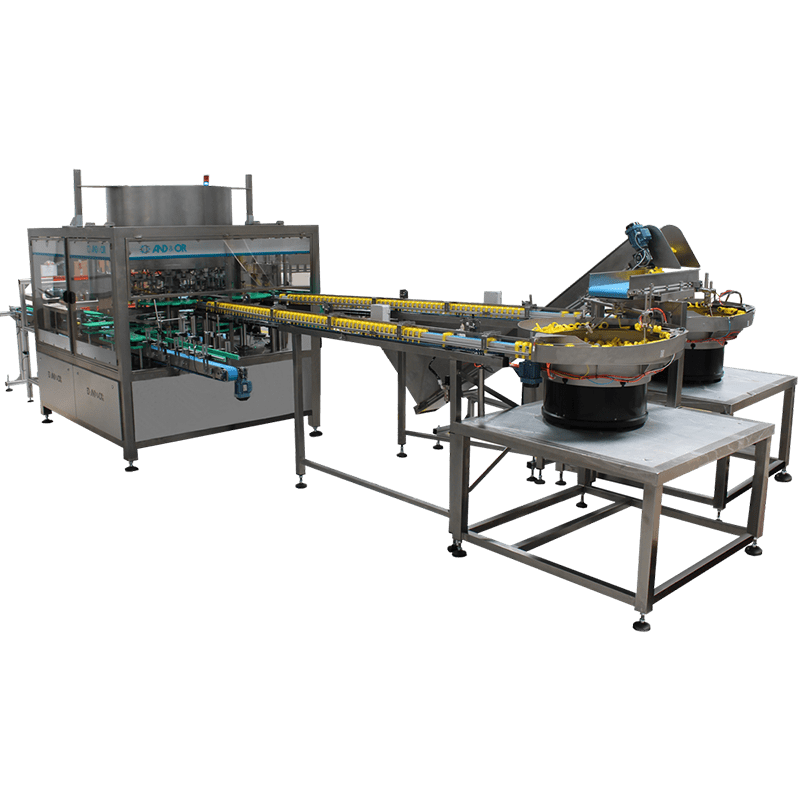

Umbrella handle applicator. Production rate: 24,000 BPH

SIAP24000
Handle applicator SIAP 24000 performs the orientation and insertion of polyethylene umbrella handles (PE) on PET bottles (from 2 to 3 liters). It is based on a rotary machine with continuous movement.

It is appropriate to be installed either after the blower in blow molding lines or after the filler, within the filling line, over an existing conveyor and after the capping system.

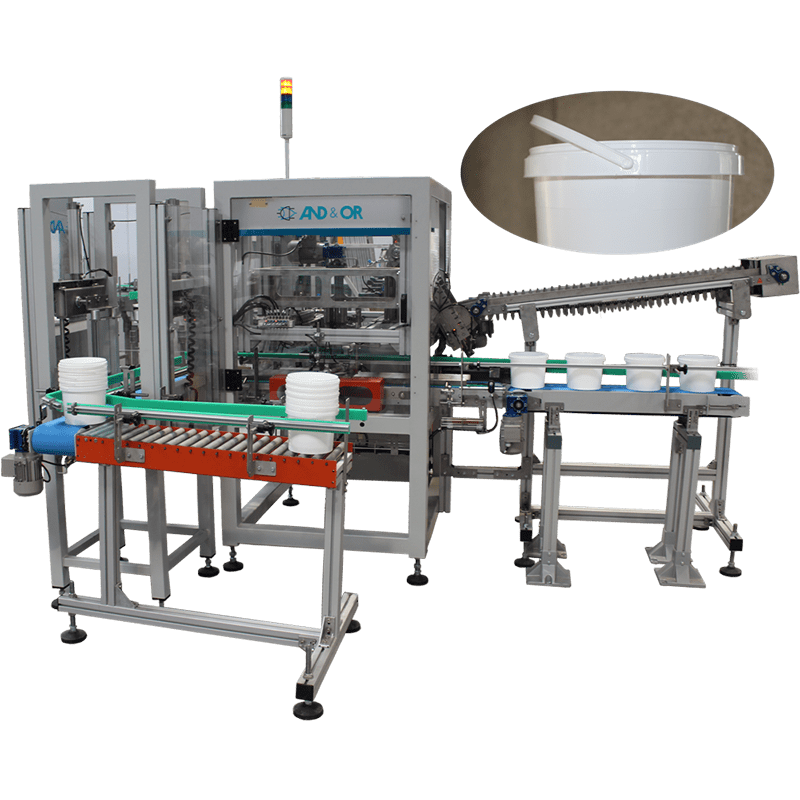

Bucket handle applicator

ASAFLAT

Bucket handle applicator Mod. ASAFLAT insert flat plastic handles into PET or polyethylene buckets.

It is a fully automatic system that allows tumble or pre oriented handles feeding, according to line characteristics.
